# Monitoring and Reporting

## Introduction

Monitoring the status of programs and registries is vital for program administrators. With OpenG2P's monitoring and logging tools, program administrators can

1. Monitor programs via visual dashboards
2. Generate reports from the PBMS
3. Monitor system health in real-time

The following tools are provided

* Integration of [Apache Superset](https://superset.apache.org/) for visual pre-configured **dashboards**
* Reporting Framework for real-time updates and **slicing and dicing of data**
* Prometheus and Grafana for **system health** monitoring
* Rancher, Fluentd, OpenSearch integration for **system logs** monitoring

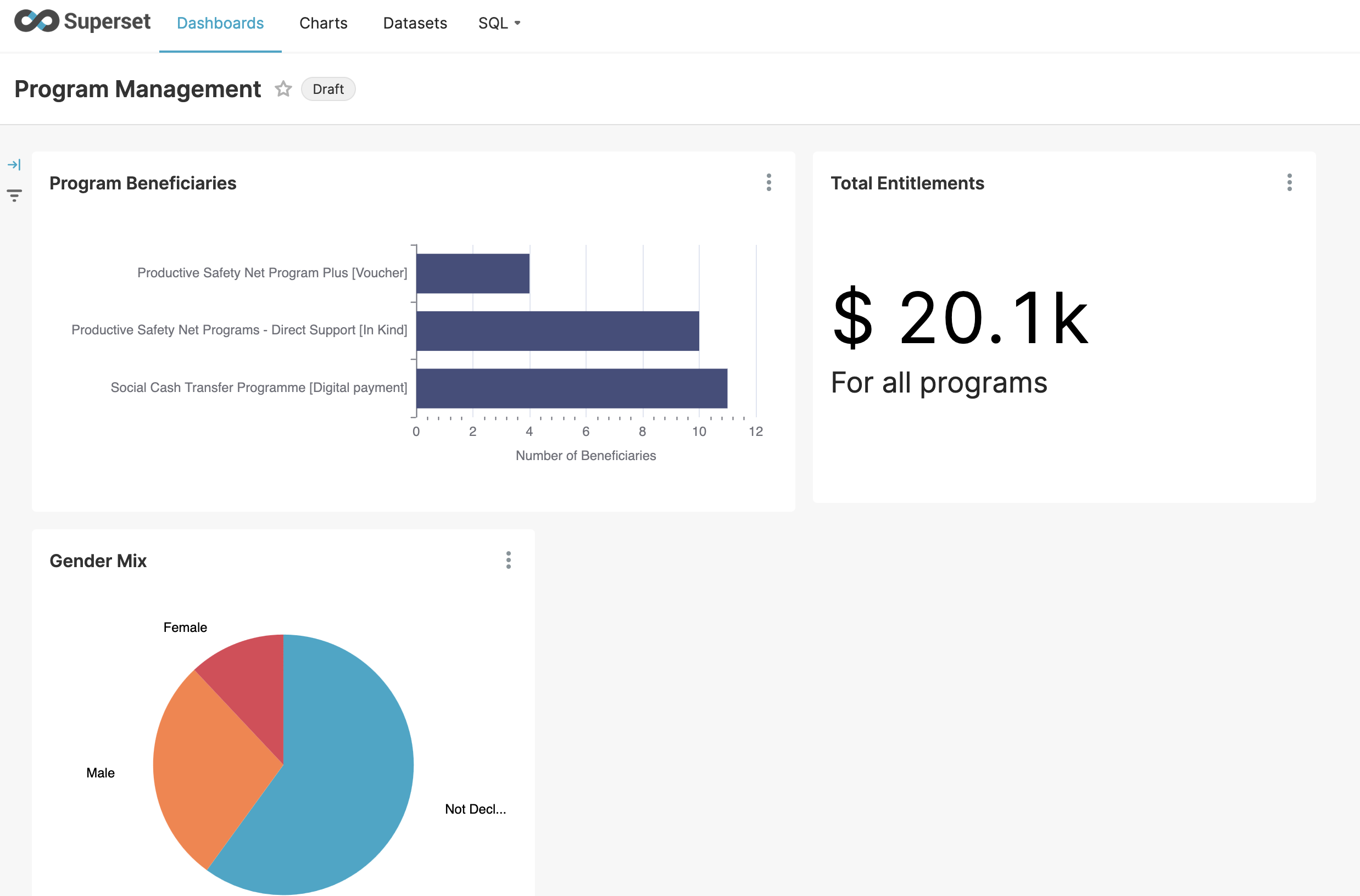

## Apache Superset

Apache Superset offers SQL query based datasets and charts for visualisation of data. OpenG2P offers pre-configured dashboards for visualisation. Refer to the [deployment instructions](https://docs.openg2p.org/1.2/deployment/openg2p-modules-deployment/reporting-deployment).

<figure><img src="https://252389534-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FCwMntokukpQZjoCcqMwL%2Fuploads%2FrLBSb9jWOcNk4aOtCpdp%2Fapache-superset-dashboard.png?alt=media&#x26;token=8e9a6938-d92b-464e-b134-c894954b6fad" alt=""><figcaption></figcaption></figure>

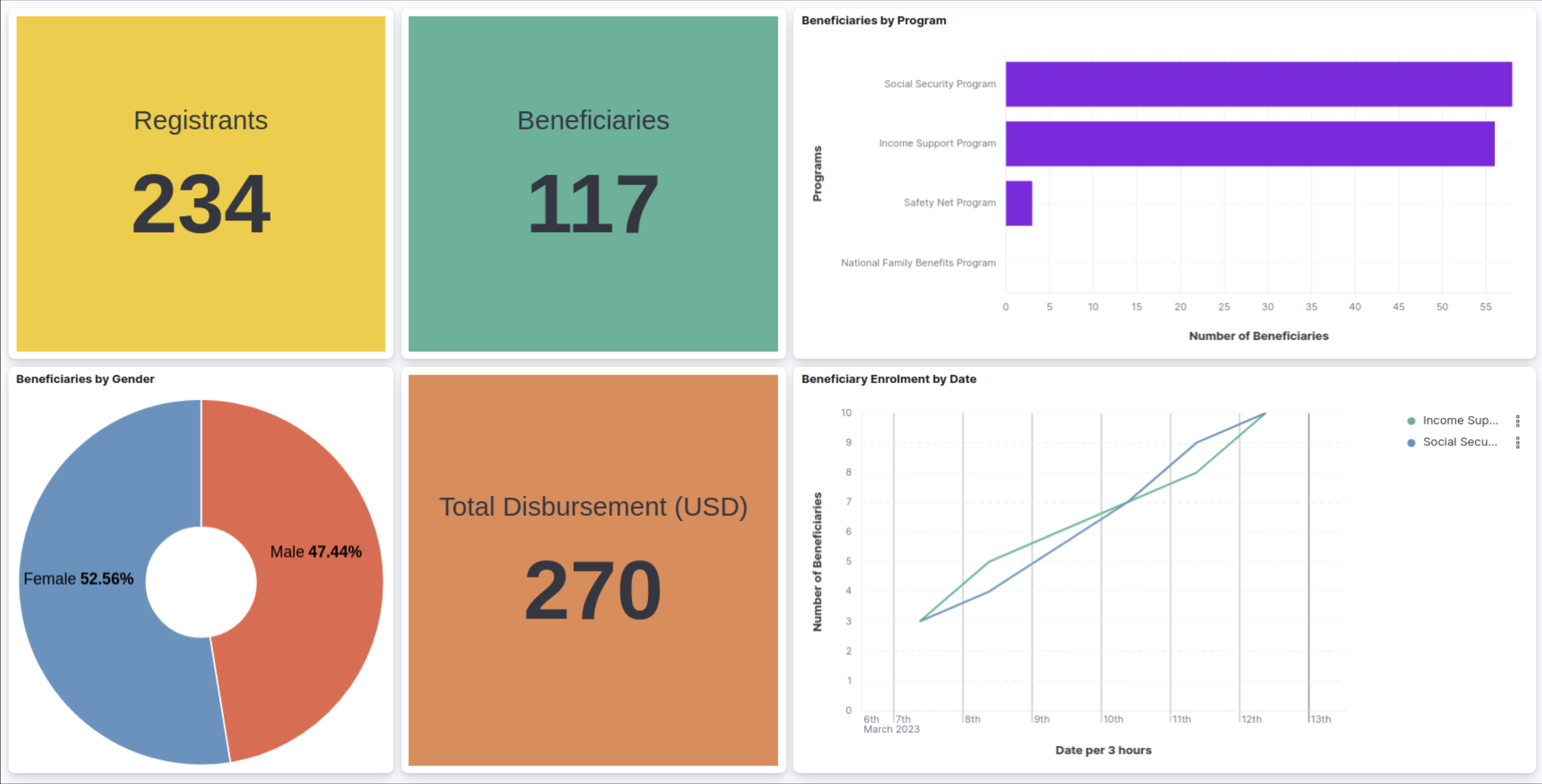

## Real-time reporting framework

<figure><img src="https://252389534-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FCwMntokukpQZjoCcqMwL%2Fuploads%2FLRF3qceNIX8ysAQAqvs6%2Freporting-dashboard.png?alt=media&#x26;token=5e2744ff-32bf-4332-a0ec-252e908370df" alt=""><figcaption></figcaption></figure>

Details of this infrastructure may be found [here](https://github.com/mosip/reporting).&#x20;

## Prometheus and Grafana

<figure><img src="https://252389534-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FCwMntokukpQZjoCcqMwL%2Fuploads%2FOorwW8yNNpU1lWbFvgUb%2Fprometheus-grafana.png?alt=media&#x26;token=1f13cc83-15ba-478b-92fb-d6689786751e" alt=""><figcaption></figcaption></figure>

## Logs monitoring via Fluentd and OpenSearch

<figure><img src="https://252389534-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FCwMntokukpQZjoCcqMwL%2Fuploads%2Fp7is5Oqnf95riScKsxhp%2Fopensearch-log-dashboard.png?alt=media&#x26;token=70f8f283-5788-495a-9469-8f01041f7d88" alt=""><figcaption></figcaption></figure>

For deployment of logging infrastructure refer to [Logging & OpenSearch Deployment](https://docs.openg2p.org/1.2/deployment/external-components-setup/logging-and-opensearch-deployment).
