Deployment Architecture

Introduction

OpenG2P provides Dockers for all its components. The proposed deployment architecture is based on Kubernetes.

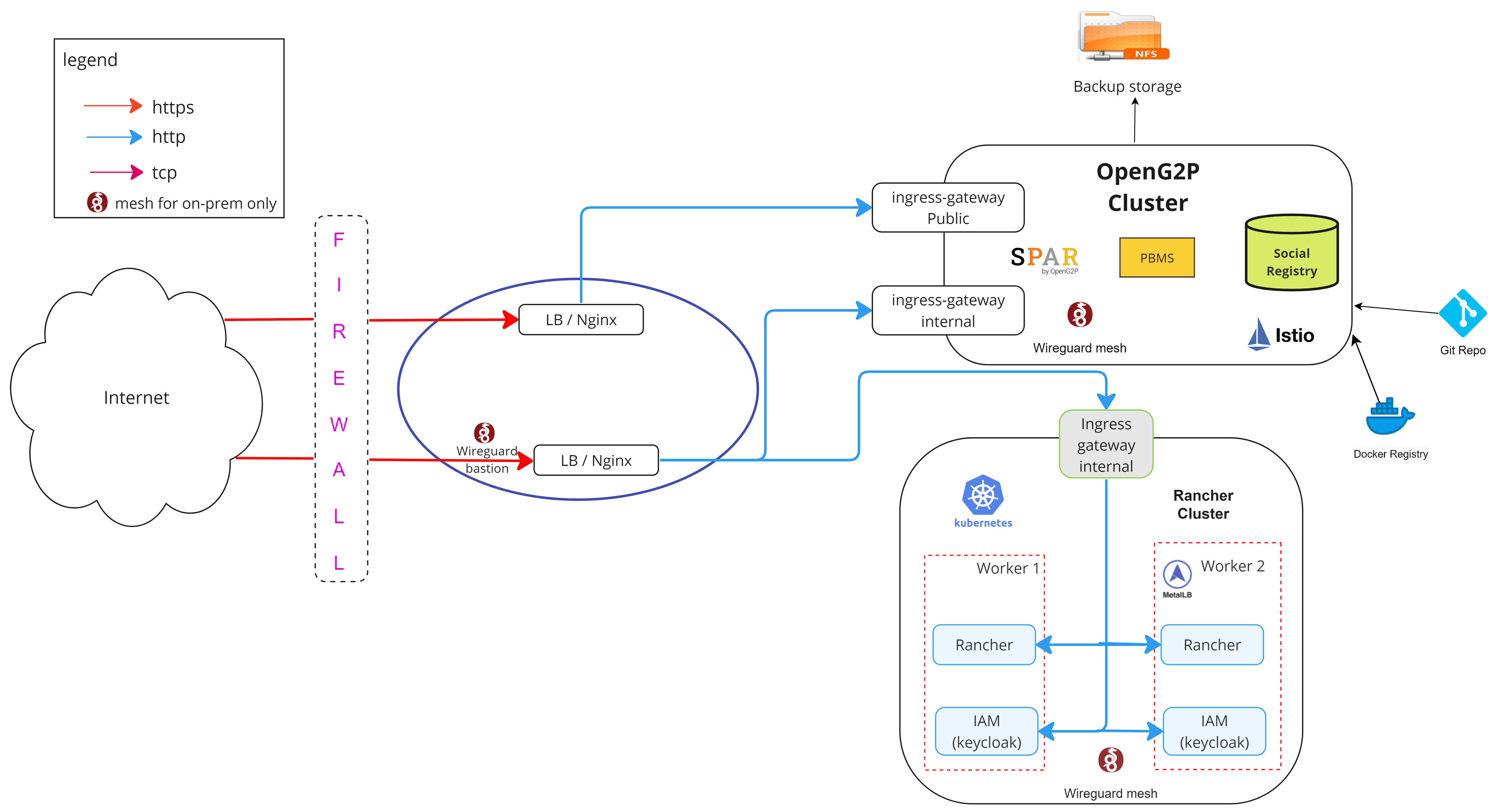

Deployment architecture

Deployment architecture

Rancher is used to manage multiple OpenG2P clusters. Rancher itself is installed on a Kubernetes cluster with redundancy as it is a critical gateway to manage the clusters. The clusters may be directly managed by the command line utility kubectl as well.
