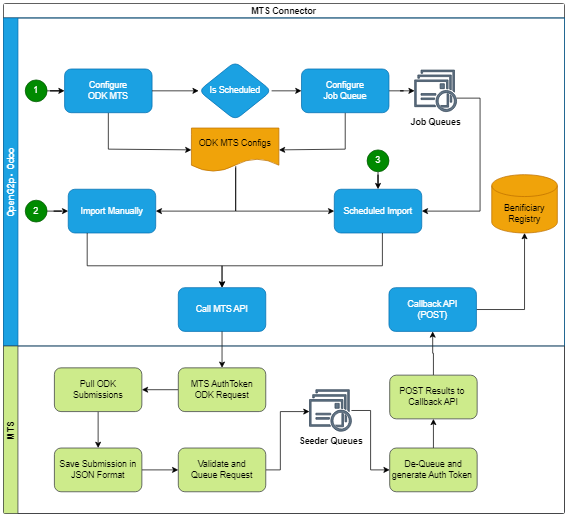

ODK MTS Connector is an OpenG2P Odoo addon that fetches tokenised data from the ODK Central by calling the MOSIP Token Seeder (MTS) and stores it in the registry.
Uses callback delivery type of MTS
Completely asynchronous execution
OpenG2P can schedule a daily job to fetch the delta for the day
Manual import feature (TBD)
| Property | Description |
|---|---|
Name
A string to identify the connector
URL to reach MTS
URL for MTS API
MTS Input type
MTS-C connects over "ODK" which is the first option in this selection. OMC option could be proceeded by selecting OpenG2P Registry.
Mapping
MTS Field mapping as required by the API. Refer to MTS Documentation. The format of Mapping would be JSON.
Output Type
MTS-C only supports JSON output type of MTS.
Output Format
Output format is a JQstring which will be used by MTS to format its output to suite the caller's requirement.
Delivery Type
Currently supporting only "Callback". Callback feature can be used to make MTS do a submission of results onto an API within Odoo. The output formatting will help in making the desired input for the API.
Job Type
MTS-C provides both recurring and one time execution. Recurring can be configured to do continuous pull from the ODK over MTS.
Interval in minutes
Interval at which the MTS-C job runs.
MOSIP Language
MOSIP language setup. The default is "eng".
ODK Base URL
Base URL or the complete domain address for the ODK central installation
ODK Odata URL
OData service (.svc) URL for the ODK form to fetch the submissions.
ODK User email
Email Id to authenticate MTS for accessing Odata URL
ODK User password
Password used to authenticate Odata URL
Callback URL
A URL endpoint which would be called upon successful processing at MTS
Callback HTTP Method
HTTP Method (POST/PUT/GET/PATCH) used while MTS makes the callback
Callback Timeout
Timeout awaited by the callback until acknowledged with a response.
Callback Auth Type
Type of authentication expected by callback URL. MTS-C currently support Odoo type which uses the session-based authentication implemented by Odoo.
Callback Auth Url
URL Endpoint that would be called to perform authentication for the callback.
Callback Auth Database
DB instance used by Odoo.
Callback Auth Username
Username to access callback API
Callback Auth Password
Password to access callback API
