Integrate with MOSIP e-Signet

Description
This guide provides steps to integrate OpenG2P with e-Signet with MOSIP as the authentication provider.
Prerequisites
1.MOSIP IDA is installed
2.The e-Signet server is installed and configured to connect to MOSIP IDA
3.MOSIP IDA APIs are accessible from the machine running the e-Signet server
4.Both Yes/No and KYC APIs are enabled on MOSIP IDA
5.e-Signet APIs are accessible from machines running OpenG2P
6.Biometric auth devices (already onboarded on MOSIP) are available for authentication
7.Email and SMS are enabled on MOSIP IDA for OTP authentication
8.MOSIP Partner Management Services (PMS) Portal or APIs must be accessible to both MOSIP Partner Admin and OpenG2P Admin
9.MOSIP Partner Specific User Token (PSUT) ID type is configured. See Configure ID Types.
Steps
Configure OpenG2P as a partner on MOSIP
1.Create an Auth Partner for OpenG2P on MOSIP.
​Guide for MOSIP 1.2.0
Guide for MOSIP 1.1.5 (TBD)
2.Create a MISP Partner for OpenG2P on MOSIP.
3.Note down the following from the above steps:
1.Auth Partner ID
2.Auth Policy ID
3.Auth API Key
4.MISP License Key
5.Auth partner signed certificate
6.IDA Partner certificate (App id: IDA, Ref Id: PARTNER)
Configure OpenG2P as relying party on e-Signet
Using PMS API
This method is applicable if MOSIP Partner Management APIs are available. These steps are executed by MOSIP Partner Admin
1.Create an e-Signet OIDC client using PMS OIDC API:
post
https://api-internal.mec.mosip.net/v1/partnermanager
/oidc/client
authParnterId: Partner ID in this step.
policyId : Policy ID in this step.
publicKey: Generate JWK.
logoUri: URL of your logo accessible publicly.
grantTypes = ["authorization_code"]
clientAuthMethods= ["private_key_jwt"]
redirectUris: URLs of the form https://<your web portal>/auth_oauth/signin
Note down the Client ID as an output of the above step.
Using e-Signet API
This method is applicable if MOSIP Partner Management APIs are not available.
1.Create an e-Signet OIDC client using the following API:
post
https://api-internal.mec.mosip.net/v1/esignet
/client-mgmt/oidc-client
clientId: Arbitrary string.
clientName: Arbitrary string.
relyingParnterId: Partner ID in this step.
publicKey: Generated JWK.
authContextRefs:
["mosip:idp:acr:biometrics","mosip:idp:acr:generated-code"]
userClaims:
["birthdate","address","gender","name","phone_number","email","picture"]
logoUri: URL of your logo accessible publicly.
grantTypes = ["authorization_code"]
clientAuthMethods= ["private_key_jwt"]
redirectUris: URLs of the form https://<your web portal>/auth_oauth/signin
Enable e-Signet on OpenG2P
These steps are executed by OpenG2P Admin on the OpenG2P Admin interface.

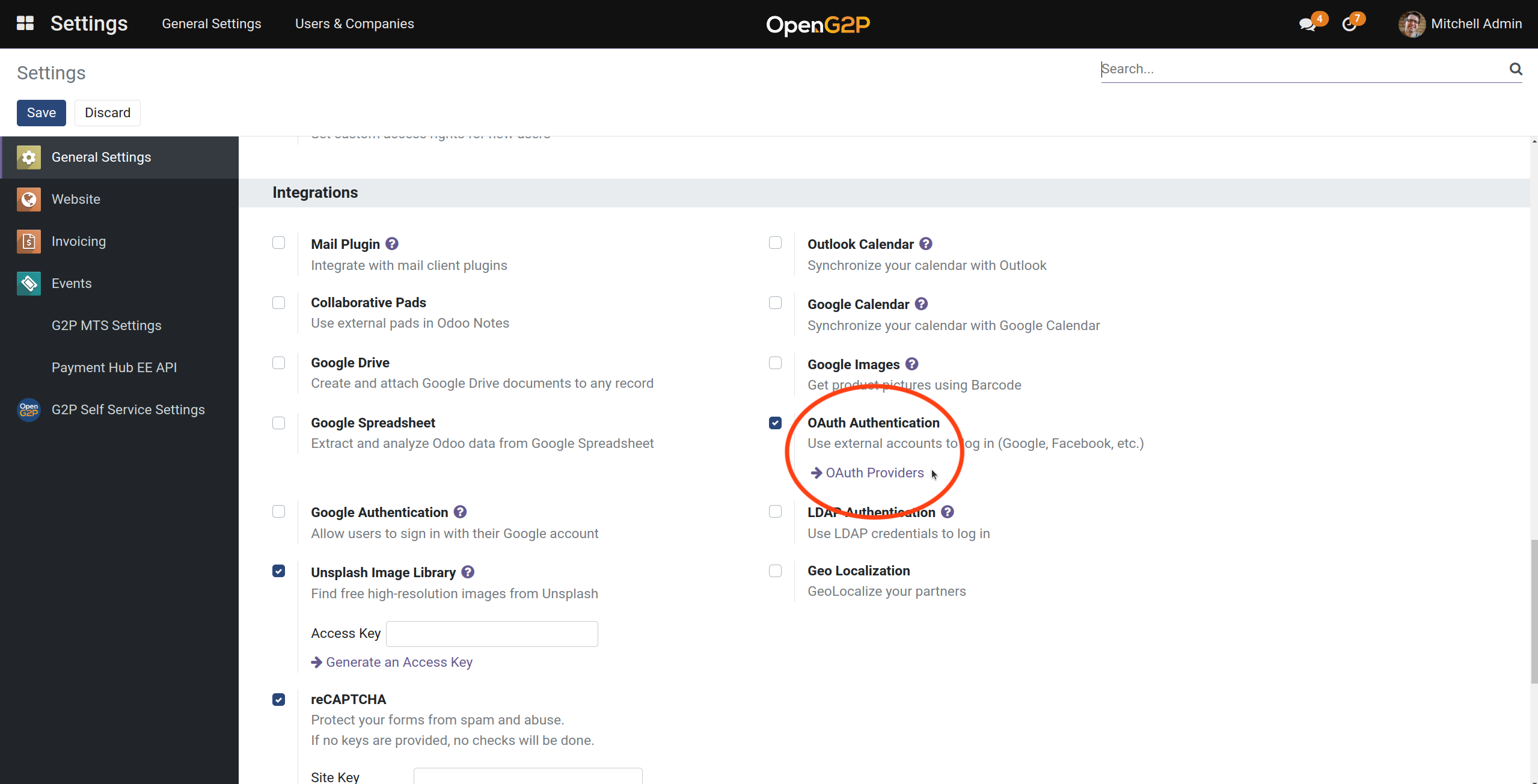

1.Go to Settings -> General Settings (Menu) -> General Settings (Panel) -> Integrations (Section) -> Oauth Providers
2.Create a new OIDC Provider with the following details:
Parameter
Value
Text
Client ID
The output of the previous section.
​
Auth Flow
OpenID Connect (authorization code flow)
​
Token map
sub:user_id
​
Client Authentication Method
Private Key JWT
​
Private Key Method
Private key used for JWK creation in the previous section.
​
Assertion Type
JWT Bearer
​
Authorization URL
e-Signet's authorize endpoint.
Example: https://esignet.mec.mosip.net/authorize​
Userinfo URL
e-Signet's userinfo API
Example: https://api.mec.mosip.net/v1/esignet/oidc/userinfo​
Token URL
e-Signet's token API
Example: https://api.mec.mosip.net/v1/esignet/oauth/token​
JWKS URL
e-Signet's JWKS API
Example: https://api.mec.mosip.net/v1/esignet/oauth/.well-known/jwks.json​
Use G2P Reg ID
True
​
G2P Registrant ID Type
MOSIP PSUT ID Type
As configured in step 9 of Prerequisites.
Partner Creation Call Validate URL
True
Specifies whether to call the MOSIP e-KYC API to fetch data into OpenG2P
Partner Creation Validate Response
name:name email:email phone:phone_number birthdate:birthdate gender:gender address:address
​
Default Group User Creation
User types / Portal
Specifies all users signing up through this OIDC Provider (e-Signet) are only going to be portal users
Login Attribute Mapping On User Creation
email
To allow users to sign in with their email and password after initial signup with e-Signet.

Parameter	Value	Text
Client ID	The output of the previous section.
Auth Flow	`OpenID Connect (authorization code flow)`
Token map	`sub:user_id`
Client Authentication Method	`Private Key JWT`
Private Key Method	Private key used for JWK creation in the previous section.
Assertion Type	`JWT Bearer`
Authorization URL	e-Signet's authorize endpoint.	Example: https://esignet.mec.mosip.net/authorize
Userinfo URL	e-Signet's userinfo API	Example: https://api.mec.mosip.net/v1/esignet/oidc/userinfo
Token URL	e-Signet's token API	Example: https://api.mec.mosip.net/v1/esignet/oauth/token
JWKS URL	e-Signet's JWKS API	Example: https://api.mec.mosip.net/v1/esignet/oauth/.well-known/jwks.json
Use G2P Reg ID	`True`
G2P Registrant ID Type	MOSIP PSUT ID Type	As configured in step 9 of Prerequisites.
Partner Creation Call Validate URL	`True`	Specifies whether to call the MOSIP e-KYC API to fetch data into OpenG2P
Partner Creation Validate Response	`name:name email:email phone:phone_number birthdate:birthdate gender:gender address:address`
Default Group User Creation	`User types / Portal`	Specifies all users signing up through this OIDC Provider (e-Signet) are only going to be portal users
Login Attribute Mapping On User Creation	`email`	To allow users to sign in with their email and password after initial signup with e-Signet.
