This guide provides steps to create an entitlement voucher template. The user can use this file to configure a voucher entitlement manager.
The user must have the Program Administrator role.
Navigate to Programs using the menu bar.

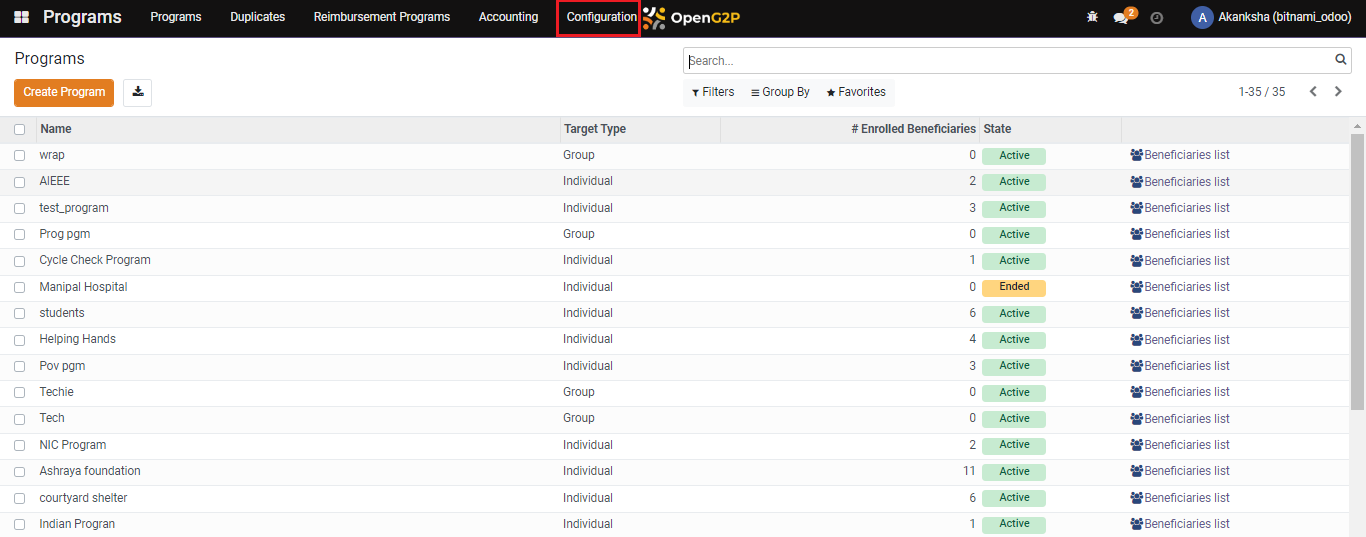

Click on Configuration.

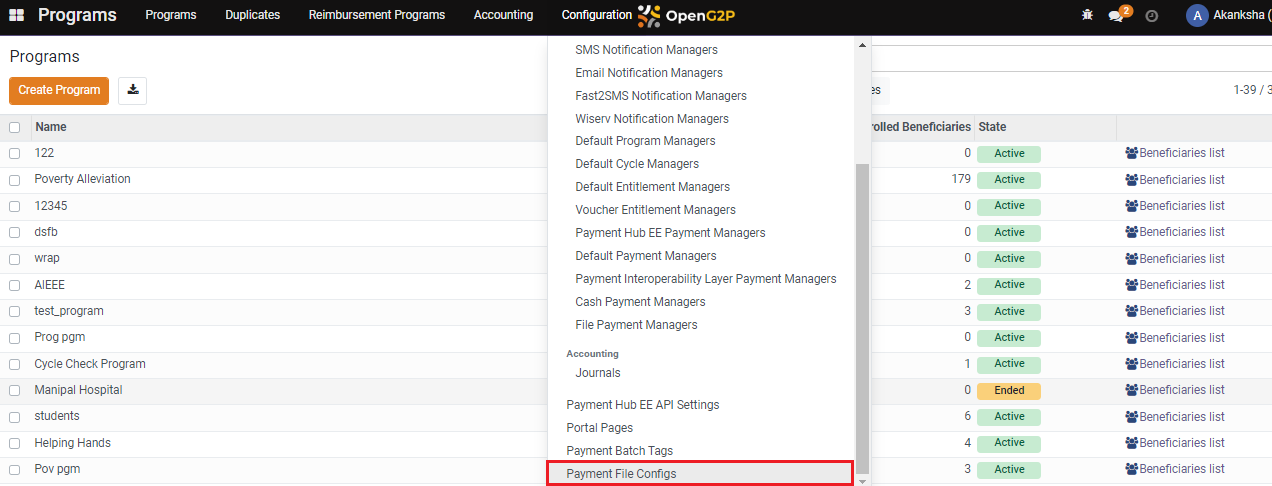

Select Payment File Configs from the drop-down list.

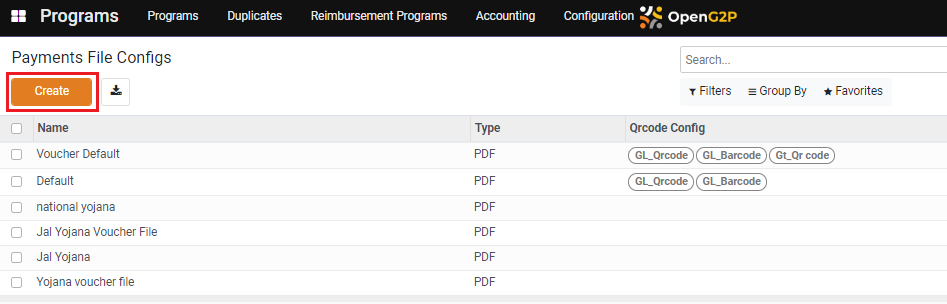

Click the Create button to view the Payments File Configs creation page.

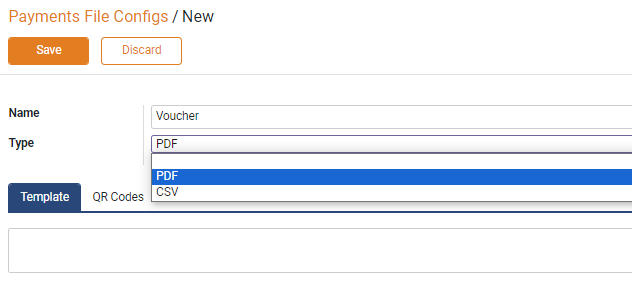

The view allows to configure the Payments File Template.
Name: Name of the Payments File Configuration
Type: Type of Document

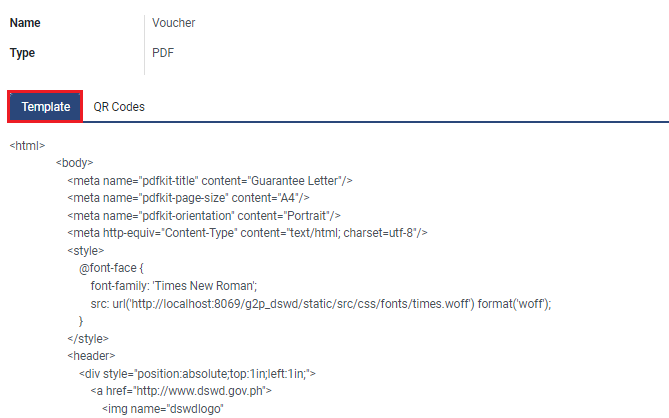

Click on Template and add the HTML code.
Click on QR Codes and then on Add a Line.

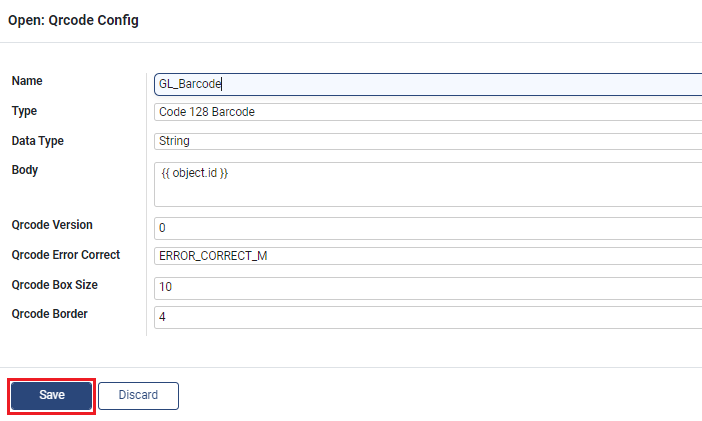

A pop-up window Qrcode Config appears.
Name: Name of the QR Code
Type: Type of QR Code
Data Type: The type of code that will be embedded in the QR Code
Body: Code as per the data type
Qrcode Version: QR Code version
Qrcode Error Correct: QR Code error correction level (L/M/Q/H)
Qrcode Box Size: QR Code box size
Qrcode Border: Number of borders in the QR Code
Click on Save.

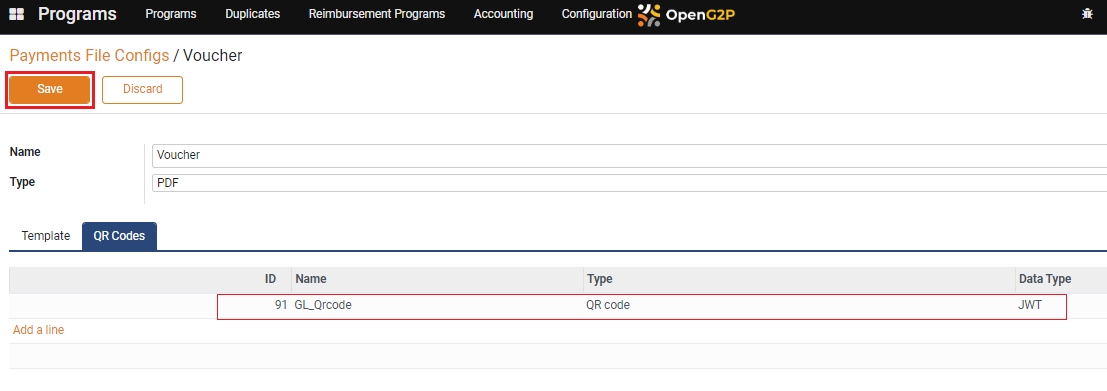

The file gets added, click on Save.
