# Configure Relationships

This document provides instructions to configure relationships in the ***Beneficiary Registry*** module.

## Prerequisites

* The user must have Registrar and Administrator role.
* The user must have access to the Beneficiary Registry module in OpenG2P systems.

## Procedure

1. Click the main menu icon ![](https://1895884874-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnKdOHLbjDdIln1QDNwSx%2Fuploads%2Fgit-blob-1b48611b7e3fc05b72b589735073c90404ac05ef%2Fmain-menu.png?alt=media) and select ***Registry***.

<figure><img src="https://1895884874-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnKdOHLbjDdIln1QDNwSx%2Fuploads%2Fgit-blob-19a86e9a8f904ccad6a7a0ec2d238ec8234c7150%2Fmain-menu-registry.png?alt=media" alt=""><figcaption></figcaption></figure>

***Registry*** screen is displayed.

<figure><img src="https://1895884874-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnKdOHLbjDdIln1QDNwSx%2Fuploads%2Fgit-blob-04588e2e0b3e50724c3139a5df2a4d66dea23896%2Fregistry.png?alt=media" alt=""><figcaption></figcaption></figure>

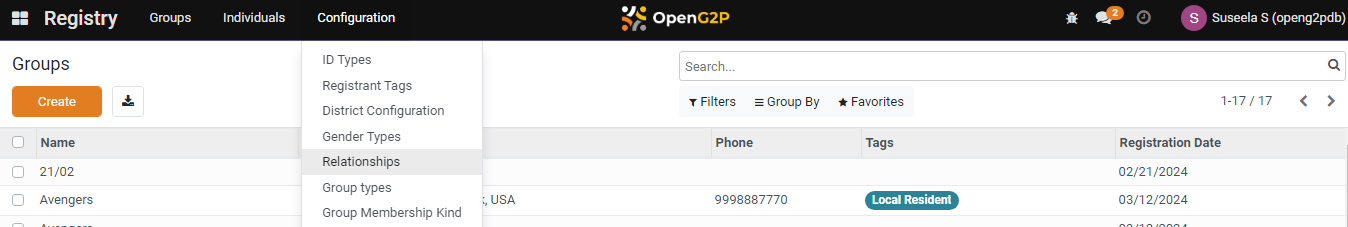

2. Click the ***Configuration*** in the menu bar and then select ***Relationships***.

<figure><img src="https://1895884874-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnKdOHLbjDdIln1QDNwSx%2Fuploads%2Fgit-blob-9436965a99cf7a751f5abd0e568d9e42cd2717ac%2Frelationship-config-br.png?alt=media" alt=""><figcaption></figcaption></figure>

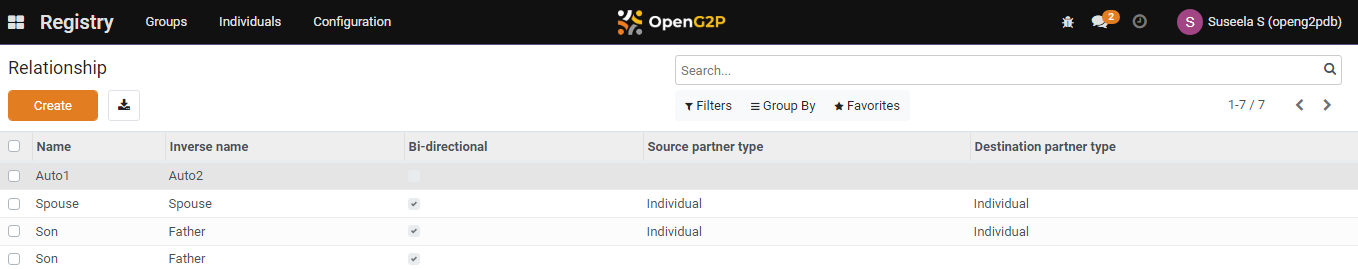

***Relationship*** screen is displayed.

<figure><img src="https://1895884874-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnKdOHLbjDdIln1QDNwSx%2Fuploads%2Fgit-blob-8e8ac43d9b3ea71983996489c682eaead53b980c%2Frelationship-config-screen-br.png?alt=media" alt=""><figcaption></figcaption></figure>

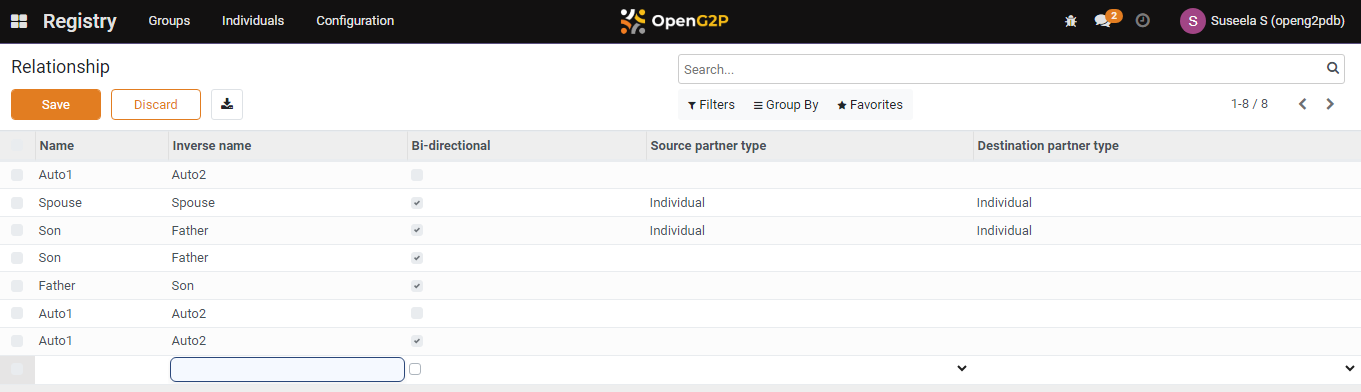

3. Click the ***Create*** button. It enables an empty field.

<figure><img src="https://1895884874-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnKdOHLbjDdIln1QDNwSx%2Fuploads%2Fgit-blob-2f373eff000b2708227cf48ea8641a581b270853%2Frelationship-config-new-field-br.png?alt=media" alt=""><figcaption></figcaption></figure>

4. Enter the relevant [Relationship](https://docs.openg2p.org/1.3/pbms/functionality/beneficiary-management/beneficiary-registry-configurations/..#relationships) value in the associated fields.
5. Enter the ***Name***, ***Inverse name***, ***Bi-directional*** in the associated field. Inverse name is a mandatory field.

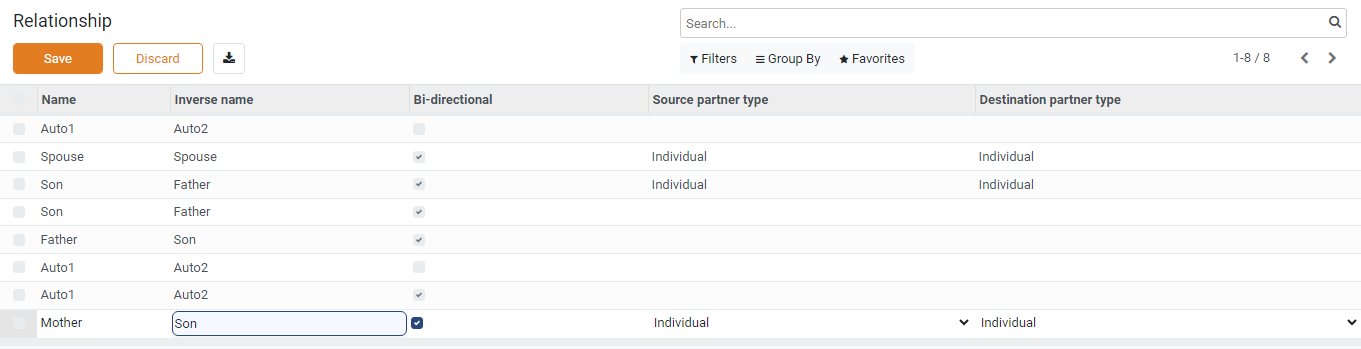

6. Select the appropriate value from the drop-down for ***Source partner type*** and ***Destination partner type*** in the associated field.

<figure><img src="https://1895884874-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnKdOHLbjDdIln1QDNwSx%2Fuploads%2Fgit-blob-9755ed871eacc4c626812afd104d75357efd5e17%2Frelationship-config-fill-field-br.png?alt=media" alt=""><figcaption></figcaption></figure>

7. Click the ***Save*** button to save the relationships configuration.
8. Click the ***Discard*** button to exit from the screen.

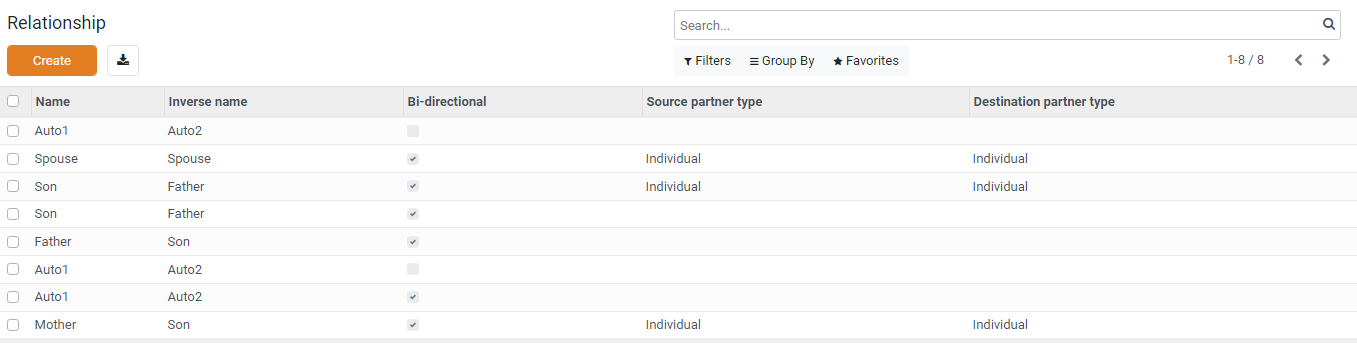

The newly created relationships is added to the relationship list.

<figure><img src="https://1895884874-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnKdOHLbjDdIln1QDNwSx%2Fuploads%2Fgit-blob-554285621b8e0669658dc922d2be4bbef52d7583%2Frelationship-config-list-br.png?alt=media" alt=""><figcaption></figcaption></figure>

9. Repeat the steps 3, 4, 5 and 6 to add the relevant relationship.

This completes the configuration of relationship in Beneficiary Registry module.

## Delete Relationships configuration

Refer to the user guide's [Configure Registrant Tags](https://docs.openg2p.org/1.3/pbms/functionality/beneficiary-management/beneficiary-registry-configurations/configure-registrant-tags#delete-registrant-tags) section to delete the configuration of the relationship.
