# Install SmartScanner App

## Description <a href="#description" id="description"></a>

The guide here provides steps to install the SmartScanner app. This app allows users to scan the QR code in the entitlement voucher.

## Pre-requisites <a href="#pre-requisites" id="pre-requisites"></a>

The user must possess an Android Phone with [WireGuard tunnel](https://app.gitbook.com/o/bnTr6Kp4z4CXR4QVIPSa/s/yo3DQVnJdJ1Ym7dquuyV/guides/how-to-guides/install-wireguard-app-and-activate-tunnel) activated.

## Steps <a href="#steps" id="steps"></a>

1. Download the SmartScanner APK file named *idpass-smart-scanner-untagged-\<version>.apk* on your Android mobile from [here](https://drive.google.com/drive/folders/1FMQQtPcKeDnhM3vfR-_EQHeEvzaPKhfq?usp=drive_link).

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fyo3DQVnJdJ1Ym7dquuyV%2Fuploads%2FLf81QdlMwMQKJdoShi0M%2Fimage.png?alt=media&#x26;token=8addbe6e-ff12-4821-8a56-bbfe260af11a" alt=""><figcaption></figcaption></figure>

2. Go to the Downloads folder in Android Mobile and click on the .apk file that you downloaded in the first step. A user prompt will appear with the options *CANCEL* and *INSTALL.* Click on *INSTALL*.

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fyo3DQVnJdJ1Ym7dquuyV%2Fuploads%2FAxWMaz5TyaoTQTDSQyb9%2Fimage.png?alt=media&#x26;token=3be2adaa-5574-4e23-9a7c-11a978dcc772" alt=""><figcaption></figcaption></figure>

3. For first-time installation, a user prompt may appear to allow unknown apps. Click on *Settings.* If no prompt appears and the application installs, then go to step#5.

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fyo3DQVnJdJ1Ym7dquuyV%2Fuploads%2FW2bcCG7uqh0d1U6zDk7q%2Fimage.png?alt=media&#x26;token=9f48fd6b-5662-4995-a48a-447ae9c5fcde" alt=""><figcaption></figcaption></figure>

4. Enable the option *Allow apps from this source,* click on the downloaded file, and install the application as described in step#2.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2Fgit-blob-fd9b08f748bd7ffa53936836cd20a22752b8e610%2Fallow-apps%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>

5. If the SmartScanner app is successfully installed, then this icon will appear on the mobile screen.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2Fgit-blob-2e55971fa66d674266f6035f96edb02f566c259b%2Fsmart-scanner-app-icon.png?alt=media" alt=""><figcaption></figcaption></figure>

6. Open the SmartScanner app. It should show the option *Voucher Code*.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2Fgit-blob-77140245f617cac16055d46490702f246a91c779%2Fvoucher-code-command.png?alt=media" alt=""><figcaption></figcaption></figure>

7. Click on the *Voucher Code* and scan the QR code shown here.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2Fgit-blob-518ce7ca62ce388d41109504d9ce0c97197fe2ea%2Fentitlement-voucher-qr-code.png?alt=media" alt=""><figcaption></figcaption></figure>

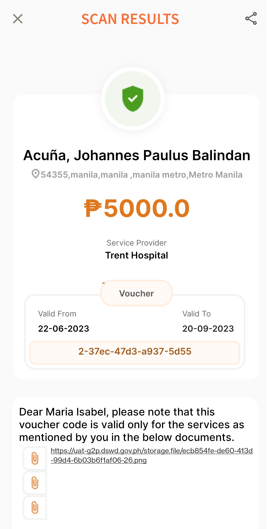

8. If the SmartScanner app is successfully installed, then the scan will show these details.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2Fgit-blob-b2a09e1ff34a30e64766fdc3c4a11f8f4f8da8a2%2Fentitlement-voucher-qr-scan.png?alt=media" alt=""><figcaption></figcaption></figure>
