# Create Cash Payment Manager

## Description

This guide provides the steps to configure the Cash Payment Manager.

## Pre-requisites

The user should have a Program Administrator role.

## Steps

1. Navigate to *Programs* using the menu bar.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2Fgit-blob-c1a9fa92d5f77bb3a18fff1b32f11938df29db06%2Fpayment-manager-program.png?alt=media" alt=""><figcaption></figcaption></figure>

2. Click on *Configuration*.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2FXep6ElgD9WivRd5nHdNc%2Fpayment-manager-conf.png?alt=media&#x26;token=476ebaac-25e6-4046-bfc5-44865b667cdb" alt=""><figcaption></figcaption></figure>

3. Select *Cash Payment Managers* from the drop-down list.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2FWpn7DM1Ycvwx7aOt0z52%2Fpayment-manger-dropdown-cash.PNG?alt=media&#x26;token=72f98966-2bc2-4517-8c88-db485f2b412e" alt=""><figcaption></figcaption></figure>

4. Click on *Create*.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2FnTeSwSKJrD8PrktPGHpz%2Fcash-payment-create.PNG?alt=media&#x26;token=b0ddca3a-8ecb-4531-aca6-6096f1cb8e67" alt=""><figcaption></figcaption></figure>

5. Enter the details.

* *Name:* Name of the manager
* *Program:* The program that will use this Payment Manager
* *Automatically Created Batch:* If enabled, the system creates batches automatically
* Currency: Currency used for beneficiary payment
* *File Document Store:* The type of storage used for the payment file
* *Payment File Config:* The name of the payment file

The payment file is configured based on the state of the *Automatically Created Batch* checkbox:

**Disabled:** Only one payment file is associated with this payment manager and configured using the *Payment File Config* dropdown. Go to step#6.

**Enabled:** Each batch has one payment file configured as part of the *Batch Tags* configuration. In this case, the *Batch Tags* configuration replaces the *Payment File Config* dropdown. Go to step#9.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2F2Kme5ia9YWIanlNzIqH1%2Fcash-payment-manager-file-conf.PNG?alt=media&#x26;token=e3c32301-86f8-43b8-8416-9d83c9bc5cea" alt=""><figcaption></figcaption></figure>

6. Click on *Add a Line* under the *Payment File Config*.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2FmkKuwqm2r6CF6nMyUS1O%2Fcash-payment-details.PNG?alt=media&#x26;token=d5040841-dfb1-437b-86cb-39db5bae6d63" alt=""><figcaption></figcaption></figure>

7. Select the file and click on *Select*.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2FI4ISJFrD0bPD5GJOJQl4%2Fvoucher-payment-select.png?alt=media&#x26;token=fcdfd62b-8753-4d19-a5e5-66b380b3709b" alt=""><figcaption></figcaption></figure>

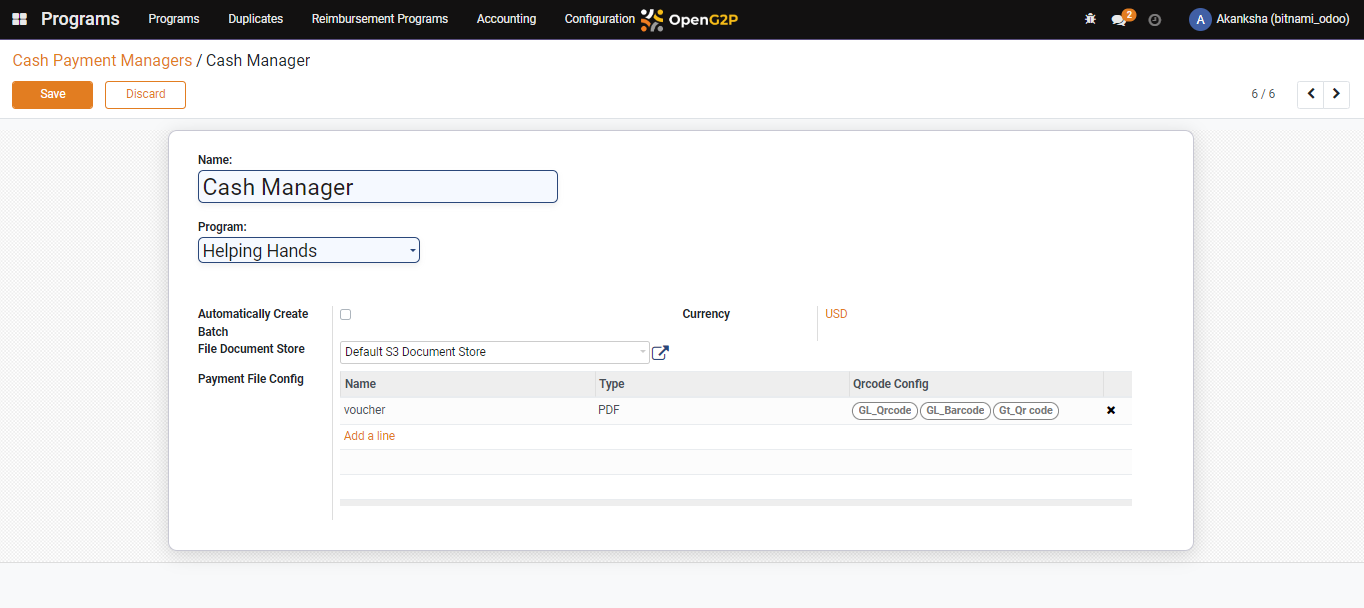

8. Click on *Save* and go to step#14.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2Fgit-blob-8fc959f64d9fa894c3f9958cfdaa37ba987ac9c1%2Fcash-payment-file-save.png?alt=media" alt=""><figcaption></figcaption></figure>

9. Click on *Add a Line* in *Batch Tags* configuration.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2FhdGakKsibmgADQoOrbut%2Fcash-payment-save.PNG?alt=media&#x26;token=3a02bfb3-70e3-4616-9afb-3d77d2be9b9f" alt=""><figcaption></figcaption></figure>

10. A dialogue box appears. Click on *Create.*

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2F0jTkNG5OGIBCgJzroXCa%2Fbatch-tags-list.PNG?alt=media&#x26;token=ab70e307-908b-419f-a67a-a6d06bb31703" alt=""><figcaption></figcaption></figure>

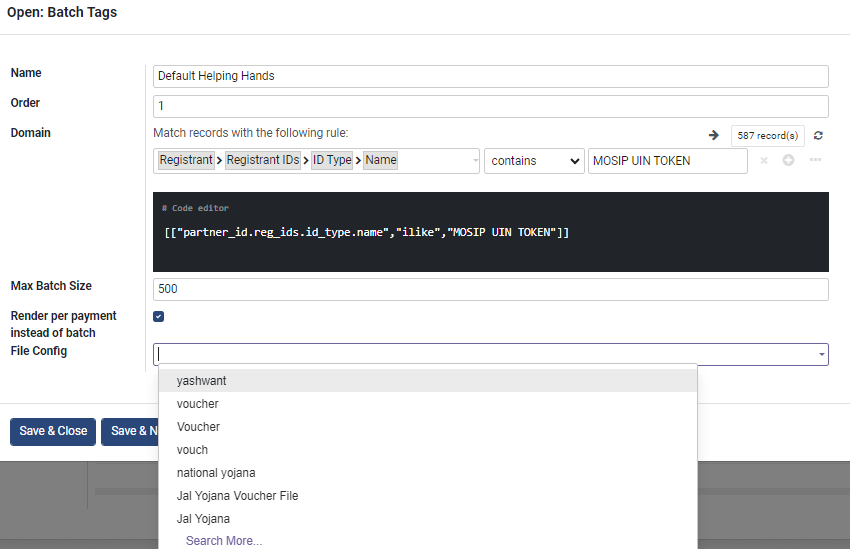

11. A new pop-up window appears. Enter the details.

* *Name*: The name of batch tags
* *Order*: The order number of this batch during sequential execution of the batches
* *Domain:* Filter to add the criteria for this batch
* *Max Batch Size*: Maximum number of payment entries in the batch
* *Render per payment instead of batch*: If enabled, the payments are rendered individually instead of in a batch
* *File Config:* Name of the payment file for this batch

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2Fgit-blob-1a3f3d187577bbc52f07ee5e08fdad4a14d2c9e8%2Fbatch-tags-drop-down.png?alt=media" alt=""><figcaption></figcaption></figure>

12. Click on *Save & Close.*

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2Fgit-blob-c44f29cf63a6ef17300023384b14afd90cc1c720%2Fbatch-tags-template.png?alt=media" alt=""><figcaption></figcaption></figure>

13. Click on *Save.*

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2Fh32yo4aB4li1S8vwWKD3%2Fcash-payment-save.PNG?alt=media&#x26;token=8b9e94c5-3221-4dd0-a6f9-ecce65cb5e44" alt=""><figcaption></figcaption></figure>

14. A new Cash Payment Manager is created and added to the list.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2FIFjssl6RQ8V6r0vYzTZb%2Fcash-payment-result.PNG?alt=media&#x26;token=c9f365fc-23dd-44d8-a3fa-c313443172b4" alt=""><figcaption></figcaption></figure>
