# Configure Entitlement Manager under Program

## Description

This guide provides steps to configure an entitlement manager in the program.

## Pre-requisites

The user must have the Program Administrator role.

## Steps

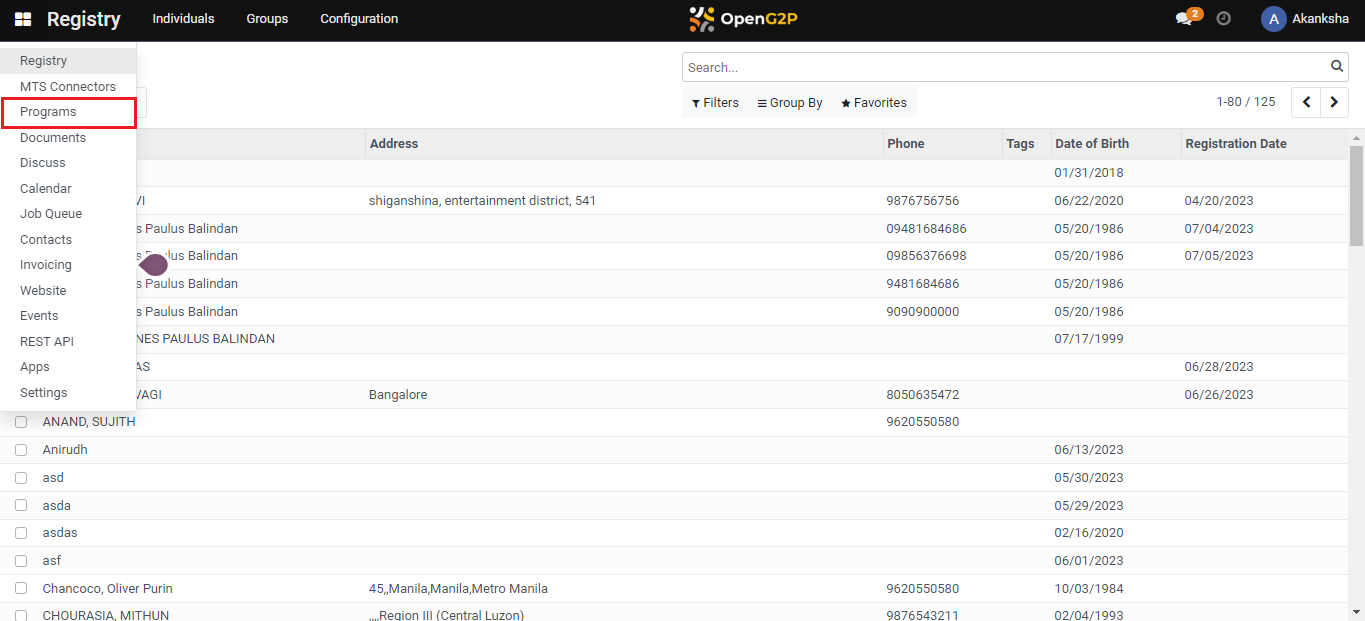

1. Navigate to *Programs* using the menu bar.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2FQjy4NrWeDrSV0YXRW0g2%2Fhome-page-openg2p.png?alt=media&#x26;token=54f63b7c-ef83-4985-afd3-bba6d7316355" alt=""><figcaption></figcaption></figure>

2. Select the desired program to configure.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2F6hfPiYsDRIAkytsQRKHp%2Fall-programs-openg2p.png?alt=media&#x26;token=c72c6d6a-97f4-4132-9adf-70043cf4d199" alt=""><figcaption></figcaption></figure>

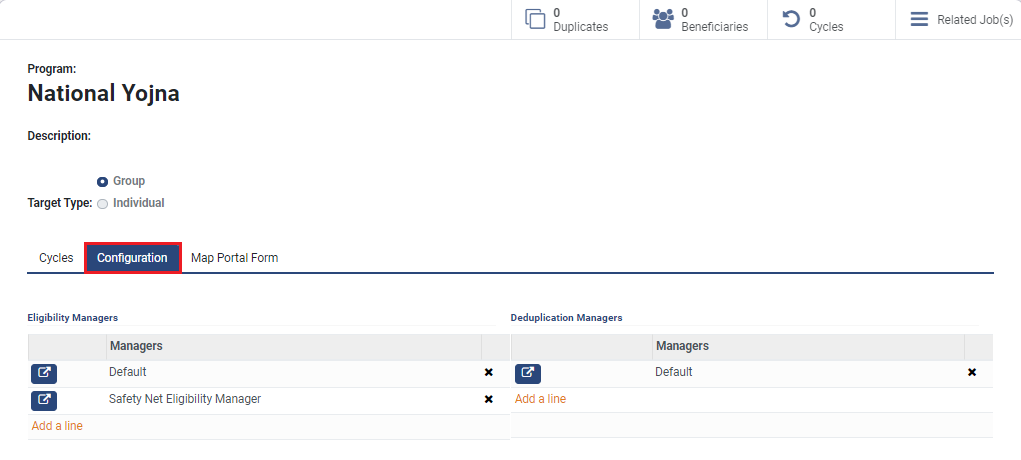

3. Navigate to the *Configuration* section on the program's detailed view page.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2F0yNMmHbtJXZzh78XL70J%2Fconfigure-entitlement-voucher-configuration.png?alt=media&#x26;token=c9dde6a9-0368-494b-9bb4-68511ae69aca" alt=""><figcaption></figcaption></figure>

4. Click on *Add a Line* in the *Entitlement Managers* section.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2FDzfhkPNnlQ2B1obfYzQg%2Fentitlement-manager-addline.PNG?alt=media&#x26;token=0b3f36ce-c2cf-4859-86c7-e07096248ccc" alt=""><figcaption></figcaption></figure>

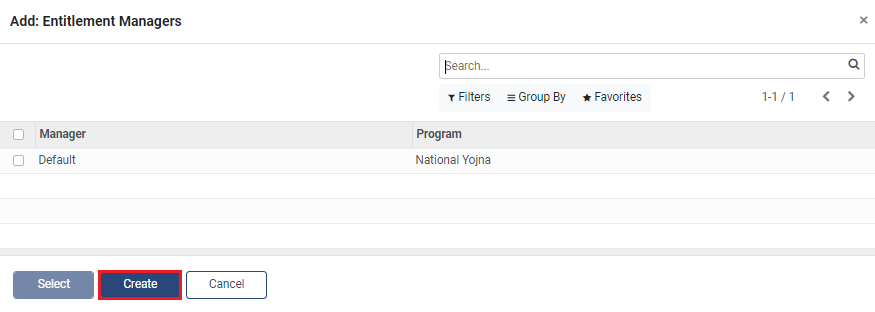

5. A pop-up window appears. Click on *Create.*

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2F12vpAWVqVwGOlHCbZUFK%2Fconfigure-entitlement-voucher-popup.png?alt=media&#x26;token=48ea4059-6129-40a4-abdd-56acc2ad4a54" alt=""><figcaption></figcaption></figure>

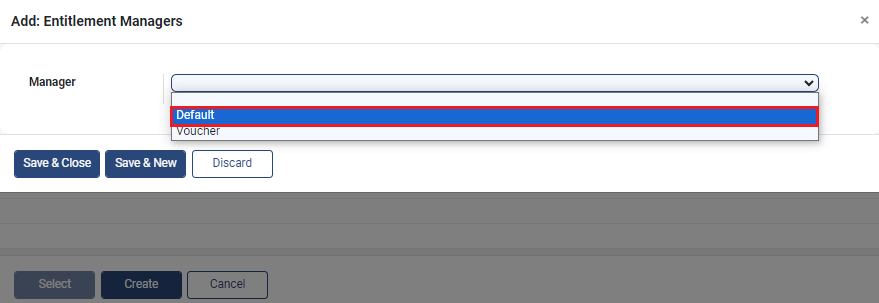

6. Another pop-up window appears. Select the desired manager type (*Default/Voucher)* from the *Manager* drop-down.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2FblTXLZXn767jXX7tXkRh%2Fentitlement-manager-default.png?alt=media&#x26;token=3089c905-e2bf-4b85-8108-1d5de0815cac" alt=""><figcaption></figcaption></figure>

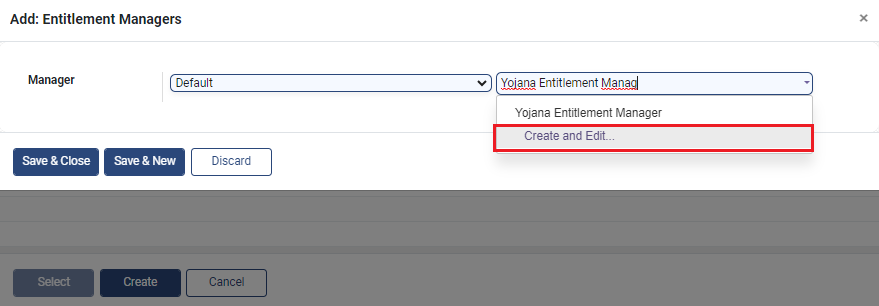

7. Another drop-down appears beside the *Manager* drop-down. Enter a name for the entitlement manager and select *Create and Edit*.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2Fucs2hZQ1gwJWDinvRtnQ%2Fcreated-and-edit-entitlement-manager.png?alt=media&#x26;token=4b5a0404-6b1d-4a41-8645-0924f8e1c522" alt=""><figcaption></figcaption></figure>

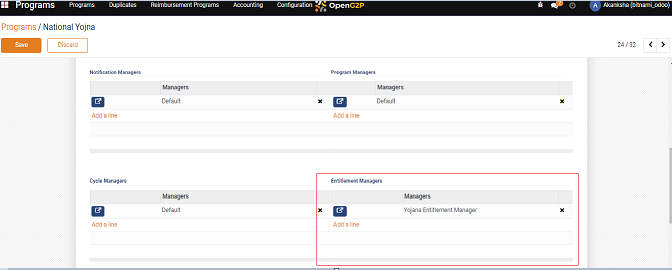

8. Another dialogue box appears. Configure the entitlement manager details as described in the [Create Entitlement Manager Type](https://docs.openg2p.org/1.1/guides/user-guides/create-entitlement-manager-type) guide.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2Foc8G9MFl026vfqUijq95%2Fdefault-entitlement-manager.png?alt=media&#x26;token=8ed27977-5aaa-4986-bdc5-a59e1610373c" alt=""><figcaption></figcaption></figure>

9. Click on *Save*.

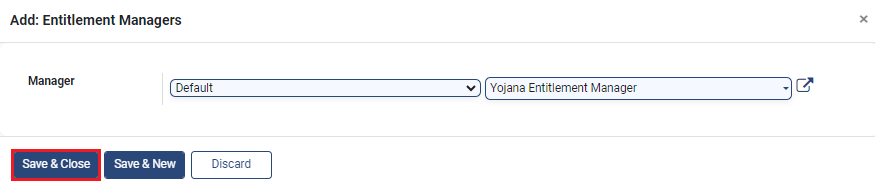

10. The manager gets added, click on *Save and Close*.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2Fgit-blob-8f7ee61999958ed243baf4fc06d0133151976ba6%2Fentitlemet-manager-save-close.png?alt=media" alt=""><figcaption></figcaption></figure>

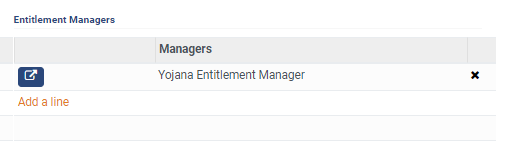

11. In the *Entitlement Manager* section, an entitlement manager is created.

<figure><img src="https://1098398587-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYPoyCjtgyun9HOF3pnQT%2Fuploads%2FUdAmf8Rz9fNMuhrntKcb%2Fentitlement-manafer-saved.PNG?alt=media&#x26;token=c37c6f26-aa24-47f0-85c5-41ad647605c2" alt=""><figcaption></figcaption></figure>
